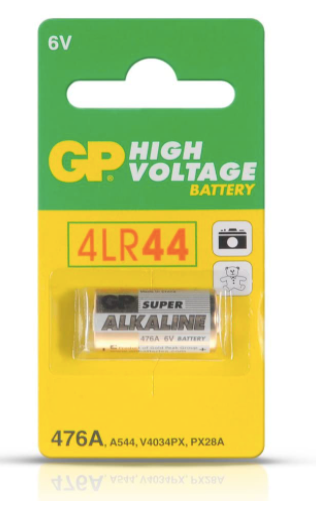

GP ALKALINE BATTERY 6V - 5 Pack - 476A - 4LR44

Description

• Description : Alkaline High Voltage Battery

• Nominal Voltage : 6Volts

• Nominal Dimensions : 13.0mm × 25.2mm

• Terminal : Nickel plated flat contacts - protruded red(+); recessed black (-)

• Jacket : Metal jacket

• Internal Connection : Pressure

• Applications : Electronic toys, photos, cameras, etc.

• Average Weight : 10g

• Date Code : Unless otherwise specified, each batteries will carry a numeric year code and analogue month code

• Shelf Life : Not less than 90% of the service capacity within first year. , not less than 85% of the service capacity with third year storage at 22 ± 3 oC 40-80 %RH.

• Insulation Resistance : 5MO min.

• Close Circuit Voltage : 5.2 Volts (min.)(load resistor 400O at 22 ± 3 oC for 0.1 to 2 seconds)

• Nominal Service Life : 125hrs (at 6kO load) (to 3.6V at 22 ± 3 oC)

• Average Service Capacity : 105mAh(at 6kO load) (to 3.6V at 22 ± 3 oC)

• Cross References:

• GP IEC - Eveready - JIS - Duracell - Varta

• PACK of 5
