Metal Toggle Switch, 2PIN SPST ON-OFF, Screw Terminal

$48.50

Metal Toggle Switch, 2PIN SPST ON-OFF, Screw Terminal
$48.50
Quantity
(Out of Stock)
Image without description.
Image without description.
Image without description.

Product Description

  • Description

Description

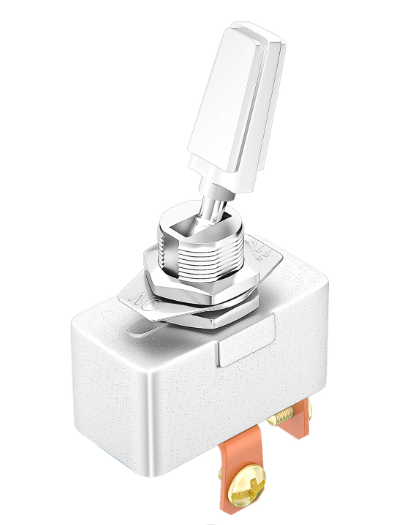

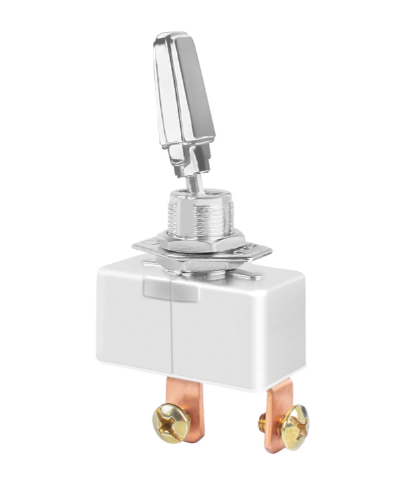

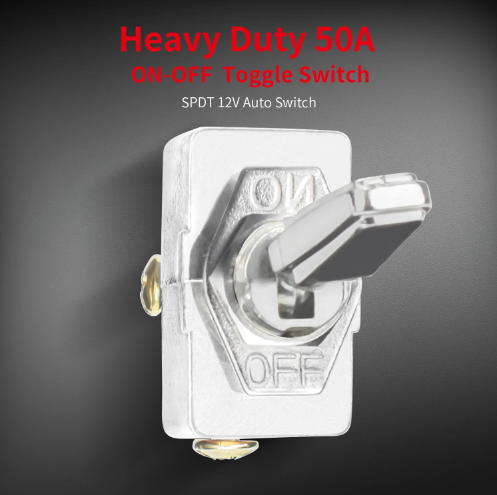

Metal Toggle Switch, 2PIN SPST ON-OFF, Screw Terminal -- METAL TOGGLE SWITCH SPST ON OFF 50A 12V 2PIN SCREW TERMINALS MARINE SWITCH

About this item

1 Batch include 10 Switches

【Function】- Auto 2 Position SPST design (single pole single throw), easy to turn ON OFF. The rating is 3A 250VAC; 6A 125VAC.

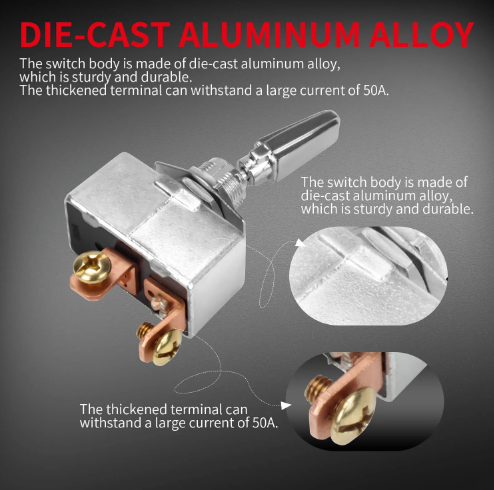

【Feature】- This on off toggle switch is made of metal and bakelite. The shaft and bracket are both made of Brass Material, and with special flat handle

【Terminal】 -Miniature 6mm 2 Way toggle switches with Terminals 1.9X0.8mm for quick connection..

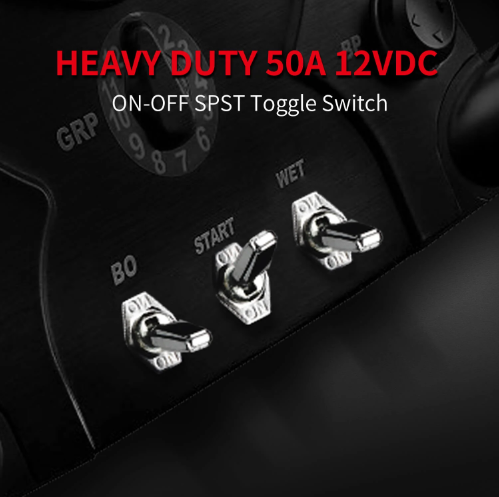

【Application】 - This miniature locking t toggle switch is suitable for almost any motorized vehicle such as Marine, Boat, Motorcycle, Racing Car, Automotive, RV, ATV, UTV, Truck, Golf Cart, Airplane.

Spec

Part NO R13-401-101
Rating: 6A 125VAC ; 3A 250VAC
Material: Bakelite, Metal

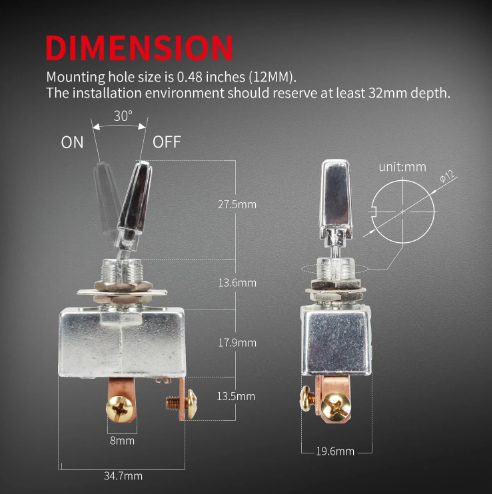

Panel Cut-Out Size: 6mm
Handle Type: Flat Handle

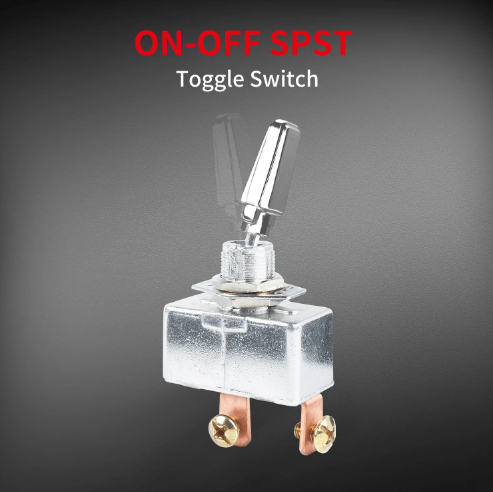

Function: ON-OFF SPST
Terminal: 2 Pins
Connector Type Solder Terminal (1.9x0.8mm)
Contact Resistance: ≤20mΩ
Insulated Resistance: ≥100MΩ
Dielectric Strength: 1 Minute 1500V AC
Operating Temperature: -25℃~+85℃
Electrical Life: ≥10,000 Cycles
