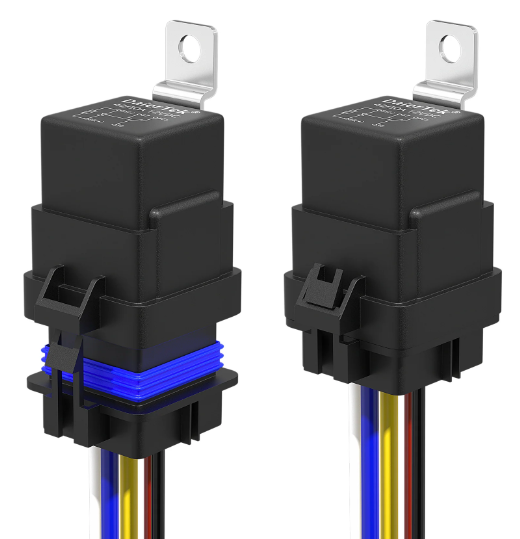

Relay, 4PINS, 12V, without auto fuse

Name: Relay, 4PINS, 12V, without auto fuse
Brand: BRS Battery
SKU: JD1914-2
Price: 28.40 CAD
Availability: InStock

$ 28.40

About this item

【12V Relay with Harness】Our 4 gang rocker switch box features a high-quality 12V relay with a convenient harness. Designed with a 5-pin SPDT automotive relay, it offers both a NO (normally open) and NC (normally closed) configuration for versatile use.

【Rating】With a trigger switch rating of DC 12V (max 14VDC), 30/40A NO 40A, NC 30A, and a 12VDC coil voltage. The enhanced voltage limitation of the trigger switch enhances safety and extends the lifespan of the relay.

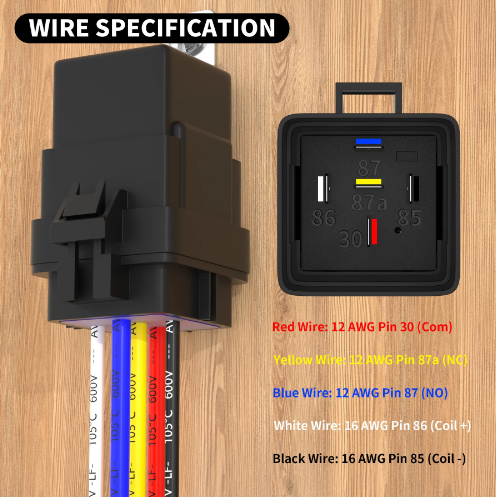

【Wire Gauge】We've included two different gauge wires in our 5-pin relay 12V. The devices are connected using 12 AWG wires (red 30, blue 87 NO, and yellow 87a NC), while the switches are wired with 16 AWG wires (black 85 and white 86). This ensures optimal power delivery and efficient functionality.

【Tinned Wire】Unlike ordinary bare copper relays, our 12-volt relay features tinned wire that offers superior corrosion resistance and oxidation resistance. This means you can store and use the relay with confidence, knowing it will maintain its performance over time.

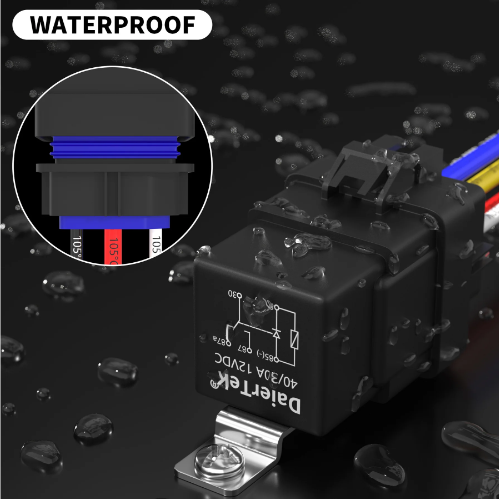

【Waterproof】To provide maximum protection, our 4 gang rocker switch box is equipped with a seal ring inside the relay socket. This enhances its waterproof performance, making it ideal for outdoor use and ensuring your electrical connections remain secure.

Pack Include: 2pcs x Relay with Socket

Spec

Part NO	JD1914-W12V
Type	5 Pin, SPDT Relay Switch
Trigger Switch Rating	30 amp / 40 amp, 12 Volt (Max 14V)
Coil Voltage	12V DC
14 AWG Wire	30 Red, 87 Blue, 87a Yellow
16 AWG Wire	85 Black, 86 White

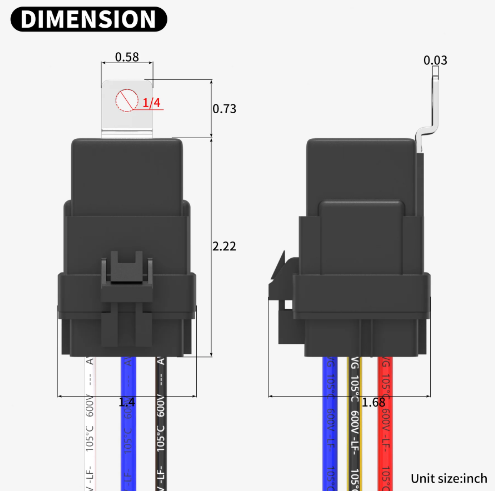

Wire Info	125mm Length, Tinned Wire
Protection	Waterproof, Dustproof, Weatherproof

Relay, 4PINS, 12V, without auto fuse - MAC SWITCHING CURRENT:40A MAC SWITCHING VOLTAGE: 14V MIN CONTACT POWER:560W TERMINAL PIN:4PIN FUSE TYPE: STANDARD
