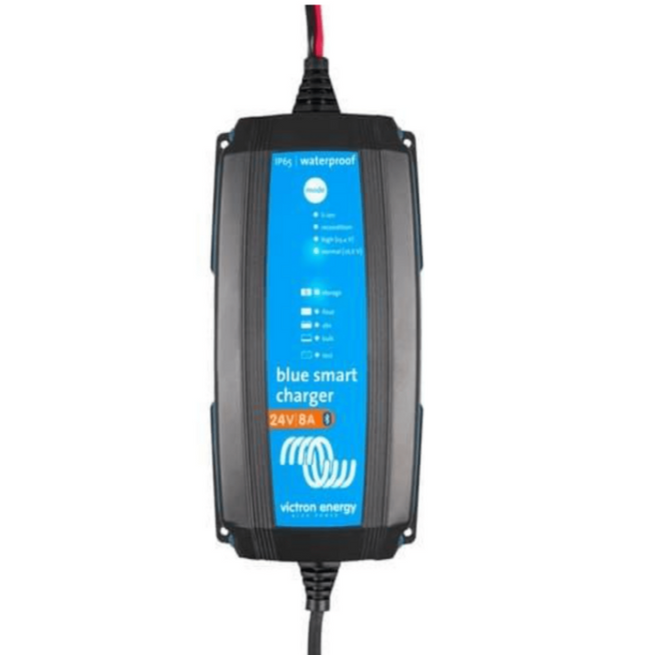

24V 8A CHARGER | LITHIUM / AGM BATTERY CHARGER (LIFEPO₄)
24V 8A CHARGER | LITHIUM / AGM BATTERY CHARGER (LIFEPO₄)
The Victron Blue Smart Charger IP65 24V 8A with built-in Bluetooth for workshops, cars, campers, motorcycles and boats provides the battery with the necessary energy, maintains its health and ensures better performance and longer life. This can be used on both AGM and Lithium batteries.
Description
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. This 24V 8A Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans and can be used on both AGM and Lithium batteries.
Victron IP65 24V 8A Charger Features:
- Water, dust and chemical resistant
- Seven steps smart charge algorithm
- Recovery of fully discharged ‘dead’ batteries
- Automatic power supply function
- Severe cold performance: down to -30°C
- Several other battery life enhancing features
- Low power mode to charge smaller batteries
- Li-ion battery mode
- Setup and configure, readout of voltage and current by Bluetooth Smart
The VictronConnect App Setup
Readout and configure your Blue Smart IP65 Charger via your smartphone!
You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen, the readout of voltage and current is the default.
App Available for iOS and Android Devices

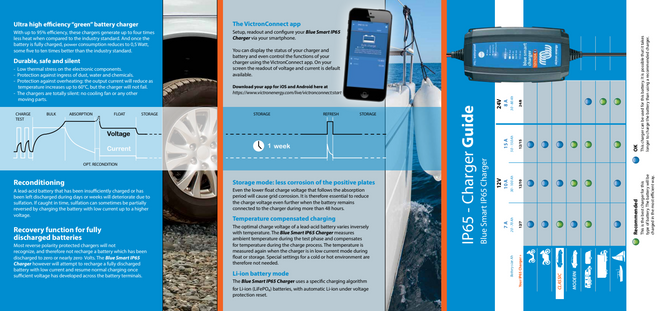

Ultra high efficiency “green” battery charger
With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 Watt, some five to ten times better than the industry standard. Durable, safe and silent – Low thermal stress on the electronic components. – Protection against ingress of dust, water and chemicals. – Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail. – The chargers are totally silent: no cooling fan or any other moving parts.
Reconditioning
A lead-acid battery that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with a low current up to a higher voltage.
Recovery function for fully discharged batteries
Most reverse polarity-protected chargers will not recognize, and therefore not recharge a battery that has been discharged to zero or nearly zero Volts. The Blue Smart IP65 Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.
Storage mode
Less corrosion of the positive plates Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger for more than 48 hours.
Temperature-compensated charging
The optimal charge voltage of a lead-acid battery varies inversely with temperature. The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charging process. The temperature is measured again when the charger is in the low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed.
Li-ion battery mode
The Blue Smart IP65 Charger uses a specific charging algorithm for Li-ion (LiFePO₄) batteries, with automatic Li-ion under-voltage protection reset.

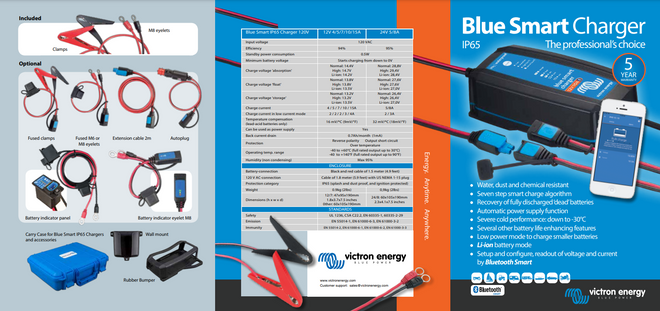

Additional Information
| Weight | 2 lbs |
|---|---|
| Dimensions | 7.5 × 4.1 × 2.3 in |
| Brand |
Victron |
| Input Voltage |
120 VAC |
| Efficiency |
95% |
| Standby power consumption |
0.5W |
| Minimum battery voltage |
Starts charging from down to 0V |
| Charge voltage 'absorption' |
Normal: 28.8V |
| Charge voltage 'float' |
Normal: 27.6V |
| Charge voltage 'storage' |
Normal: 26.4V |
| Charge current |
8 Amps |
| Charge current in low current mode |
3 Amps |
| Temperature compensation (lead-acid batteries only) |
32 mV/°C (9mV/°F) |
| Can be used as power supply |
Yes |
| Back current drain |
0.7Ah/month (1mA) |
| Protection |
Reverse polarity / Output short circuit / Over temperature |
| Operating temp. range |
-30 to +50°C (full rated output up to 30°C) |
| Humidity (non condensing) |
Max 95% |
| Battery-connection |
Black and red cable of 1.5 meters (4.9 feet) |
| 120 V AC-connection |
A cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug |
| Protection category |
IP65 (splash and dustproof, and ignition protected) |
| Safety |
UL 1236, CSA C22.2, EN 60335-1, 60335-2-29 |
| Emission |
EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity |
EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
