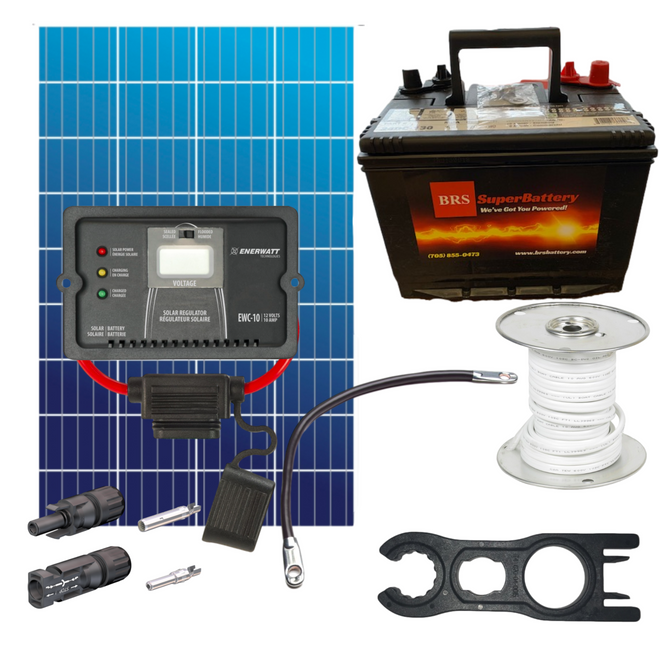

100 Watt Solar Kit

Image without description.
$ 477.05 You Save: $-477.05 (100%)

100 Watt Solar Kit

Image without description.
$ 477.05 You Save: $-477.05 (100%)
Quantity
Maximum Quantity Available In Stock
(Out of Stock)
Delivery:
Sunday, Oct 05 - Sunday, Oct 12
Image without description.
Image without description.
Image without description.
Image without description.

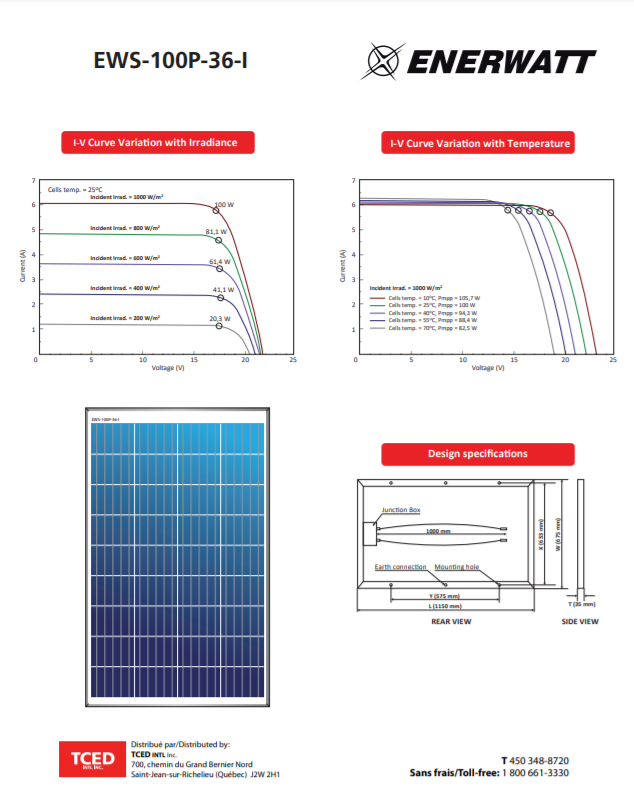

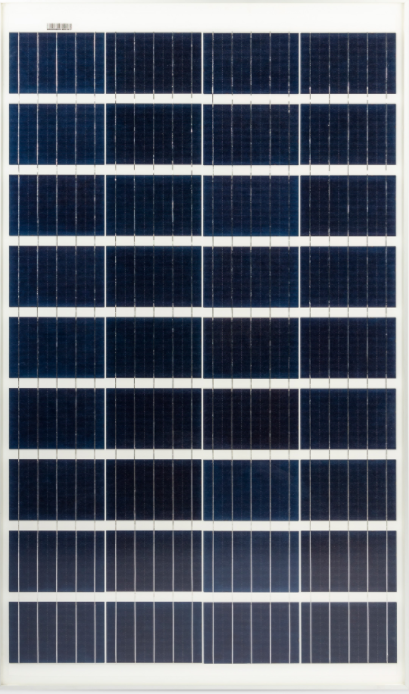

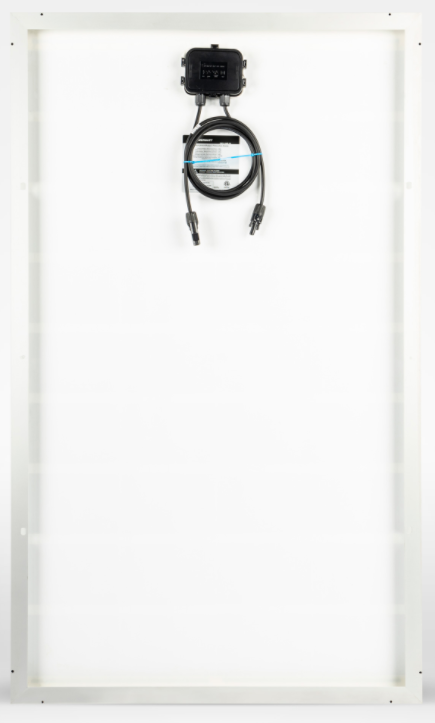

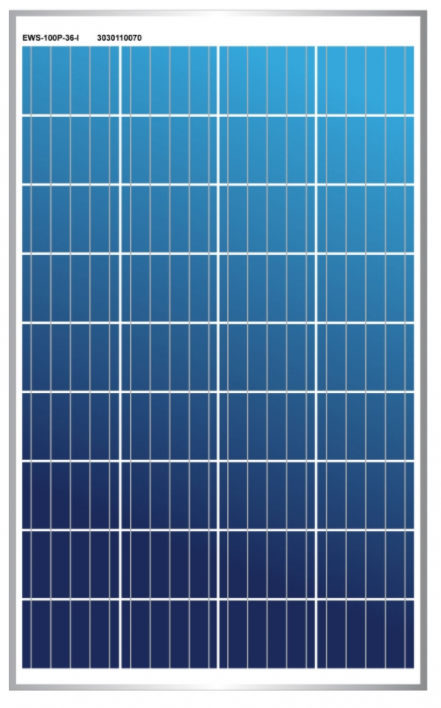

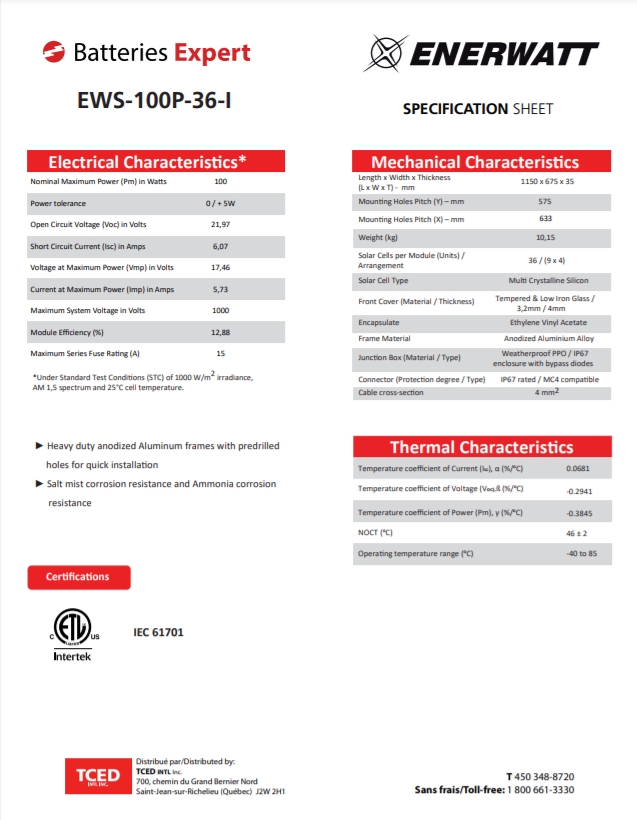

EWS-100P-36-I Solar panel polycristalline 12V 100W - Quantity: 1

Specification

Ampères / Amps
5.56A
Marque / Brand
Enerwatt
Garantie / Warranty
30 ans
30 years
Hauteur / Height
1.4" / 35 mm
Largeur / Width
26.6" / 675 mm
Longueur / Length
45.3" / 1150 mm
Numéro de pièce/modèle / Part/Model Number
EWS-100P-36-I
Type de terminal / Terminal Type
MC4
Volts
18.0vmp / 21.9voc
Watts
100W

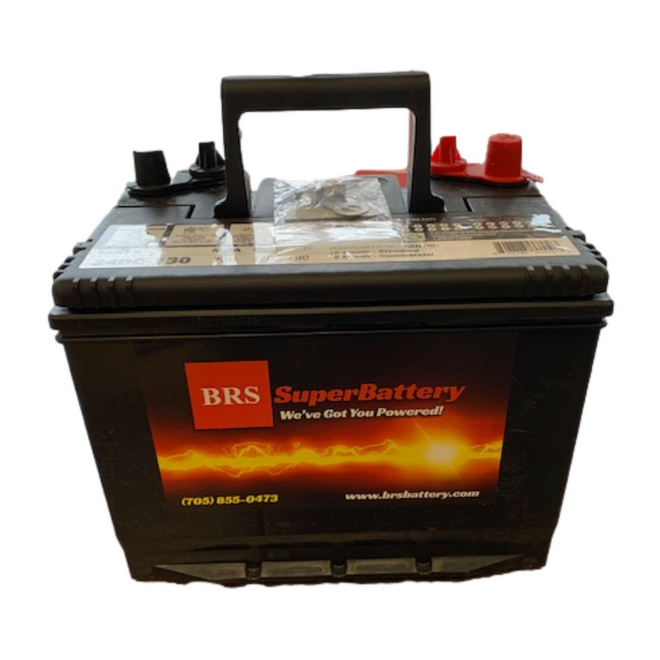

GROUP 24 DEEPCYCLE BATTERY 80AH 120RC - Quantity: 1

Specifications

Ah/20h
75
Marque / Brand
Batteries Expert
CA (0°C / 32°F)
650
CCA (-18°C / 0°F)
525
Type (chimie) / Type (Chemistry)
Flooded/Humide (Pb)
Couleur / Colour
Black / Noir
Format / Size
GR-24
Garantie / Warranty
24 mois / months
(Commercial : 12 mois / months)
Hauteur / Height
9.3"/235mm
Largeur / Width
6.6"/168mm
Longueur / Length
10.7"/272mm
Numéro de pièce/modèle / Part/Model Number
24-BOLT12
MCA (0°C / 32°F)
650
Capacité de réserve @ 25A / Reserve Capacity @ 25A (minutes)
120
Type de terminal / Terminal Type
M
Volts
12
Poids / Weight (kg)
18.10

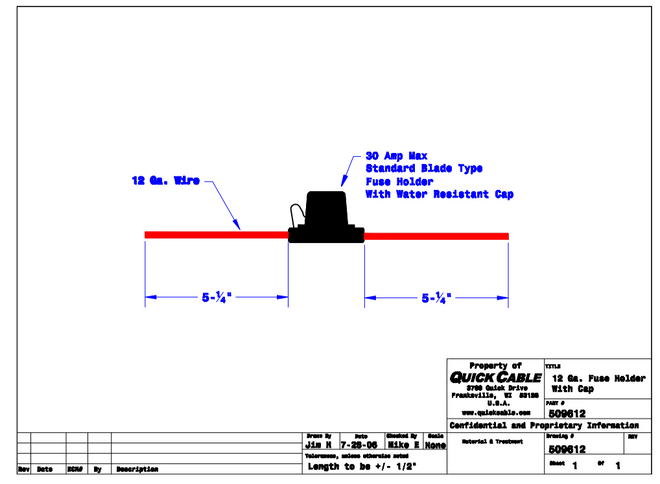

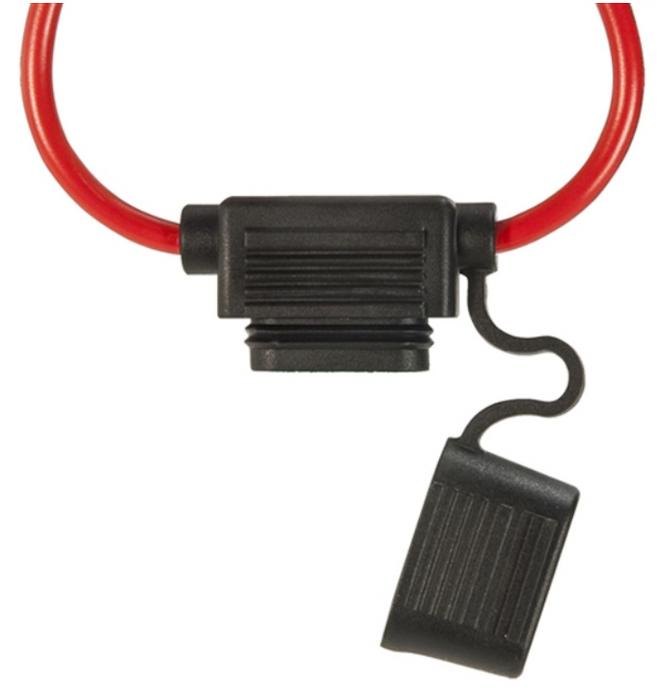

QC509612-2001 FUSE HOLDER 30A BLADE WATERPROOF 12GA - Quantity: 1

Ampères / Amps
30A
Marque / Brand
Quick Cable
Garantie / Warranty

Numéro de pièce/modèle / Part/Model Number
QC509612-2001
Volts
32V



QC7515-025 SWITCH TO STARTER CABLE 1 AWG 15 - Quantity: 1

Marque / Brand
Quick Cable
Garantie / Warranty

Longueur / Length
15"/ 381mm
Numéro de pièce/modèle / Part/Model Number
QC7515-025
Type de terminal / Terminal Type
Lug-Lug

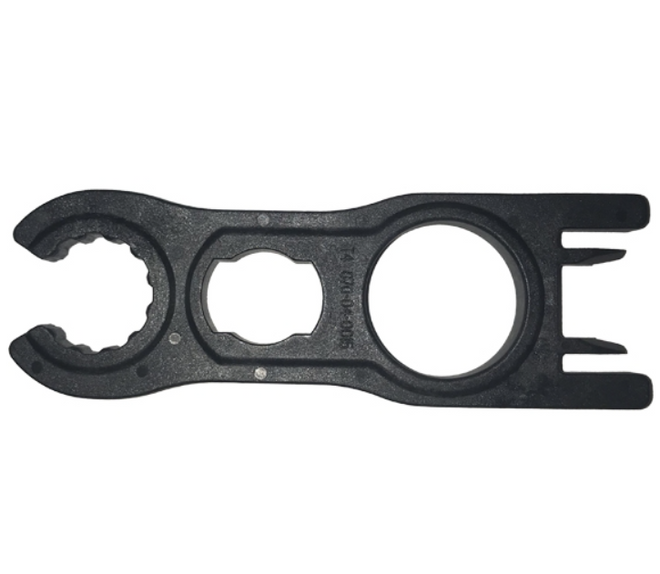

MC4-PAIRE CONNECTOR MC4 PAIR MALE/FEMALE - Quantity: 1

MC4-2 SOLAR PANEL MULTI-CONTACT CONNECTORS

EASY AND FAST INSTALLATION OF YOUR SOLAR PANEL WITH MC4-PAIRE CONNECTORS

Today, most solar panels come with approximately 3 ft. of Positive (‘+’) and Negative (‘-‘) wire. One end of each wire is connected to the junction box of the panel. In most solar panels, the other end of each wire is terminated with an MC4 connector. The Positive (‘+’) wire has a Female MC4 Connector and the Negative (‘-‘) wire has a Male MC4 Connector.

To extend the length of the wires of these solar panels for connection to a charge controller, combiner box or grid-connected inverter, an extension wire is required with corresponding Male and Female MC4 Connectors.

QUICK ASSEMBLY
The MC4-PAIRE KIT contains 1 male and 1 female MC4 solar panel connector. This type of connector system is easy to install and uses “snap-in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection.
Once the connectors locked, the mating contacts are sealed against ingress of dust and water.

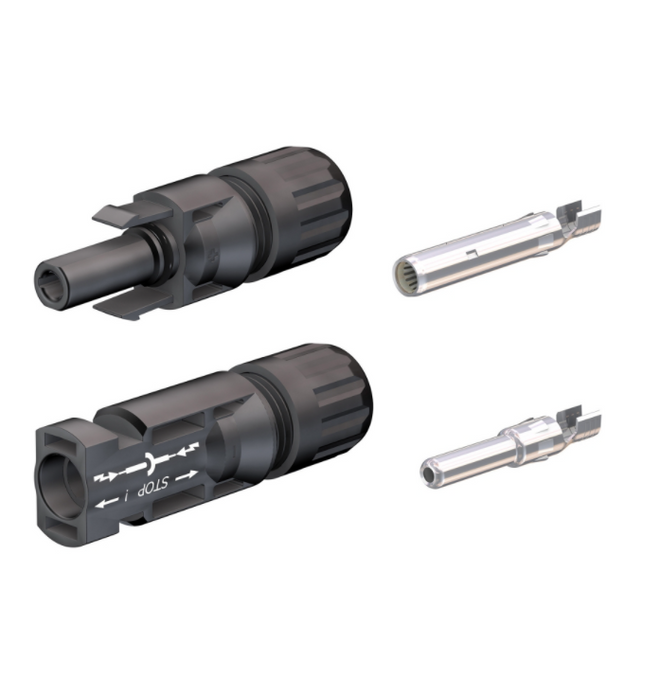

CONNECTOR COMPONENTS
The Male and Female MC4 Connectors consist of the following components:
• Outer insulated housing with locking arrangement.
• Tin-plated Copper metallic male & female mating contacts. The wire is placed in the crimping area and crimped with a special crimping tool, such as the PV-FMC4
• Nut & internal rubber bush. When the nut is tightened, the internal rubber bush is compressed around the outer jacket of the cable and thus, provides water-tight sealing.

CABLE GAUGE
The MC4 connectors provided are compatible for use with AWG #10 or AWG #12 wire with outer insulation diameter 3

Specifications

Marque / Brand
Non-applicable / Not-applicable
Garantie / Warranty
25 ans
25 years
Numéro de pièce/modèle / Part/Model Number
MC4-PAIRE
Marques de certifications / Regulatory Certification Marks
UR
Poids / Weight (kg)
0.02

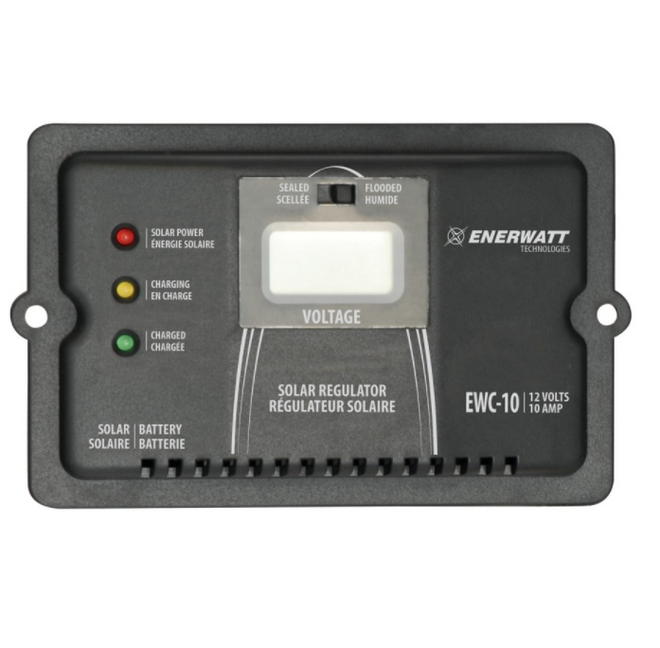

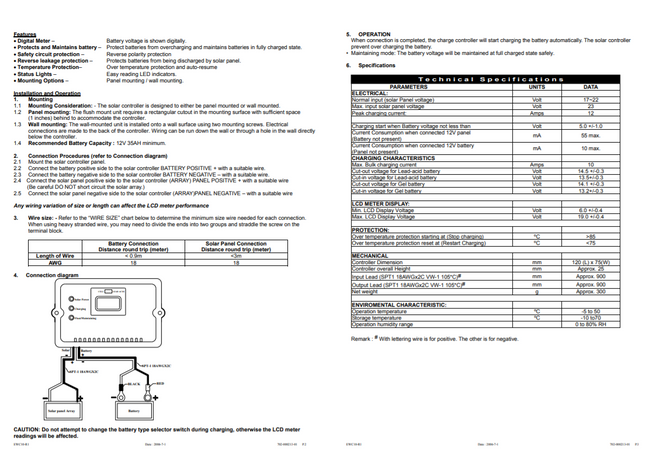

EWC-10 CONTROLLER 12V 10A METER ENERWATT : Quantity 1

Ampères / Amps
10A
Marque / Brand
Enerwatt
Garantie / Warranty
36 mois
36 months
Hauteur / Height
1" / 25 mm
Largeur / Width
2.9" / 73 mm
Longueur / Length
4.72"/ 120 mm
Numéro de pièce/modèle / Part/Model Number
EWC-10
Marques de certifications / Regulatory Certification Marks
CE
Volts
12V
Poids / Weight (kg)
0.3000

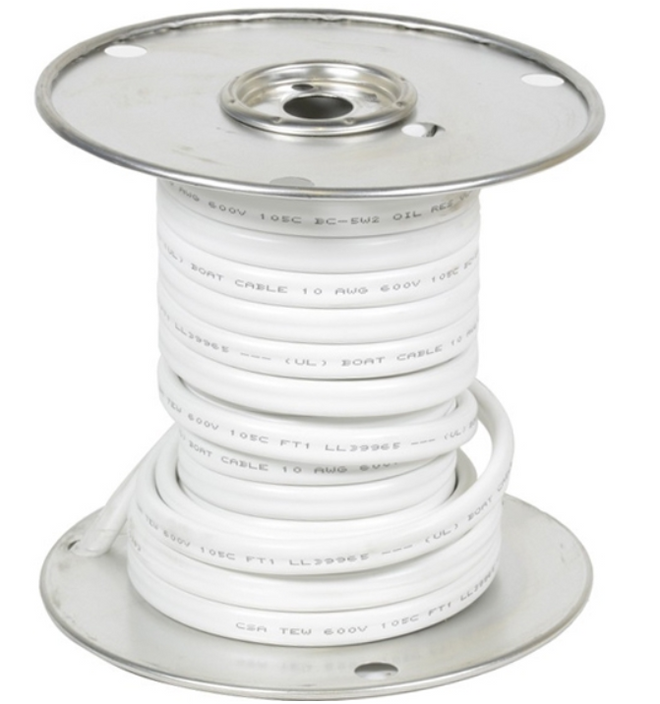

#10-2 MARINE WHITE CABLE - PER INCH (240 inches / 20 feet of cable)
