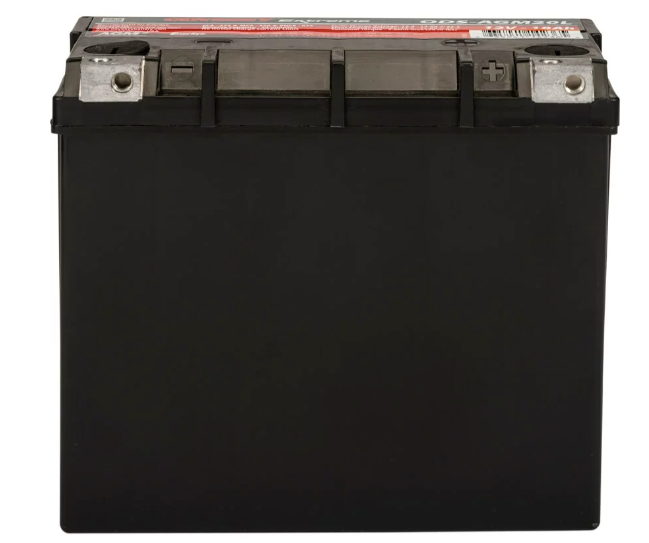

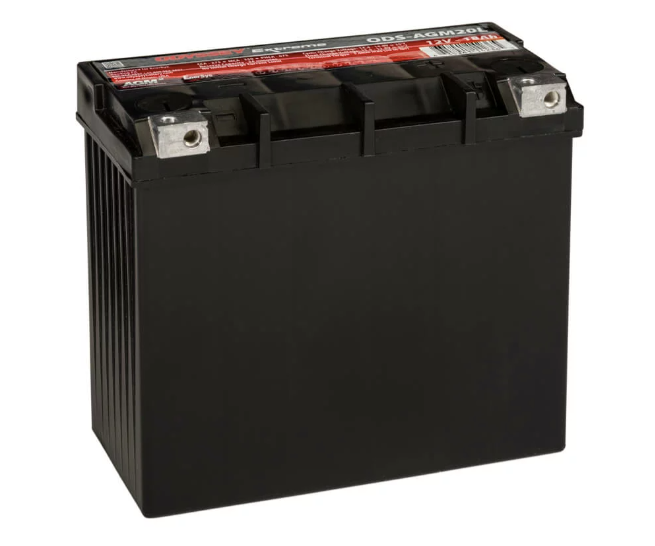

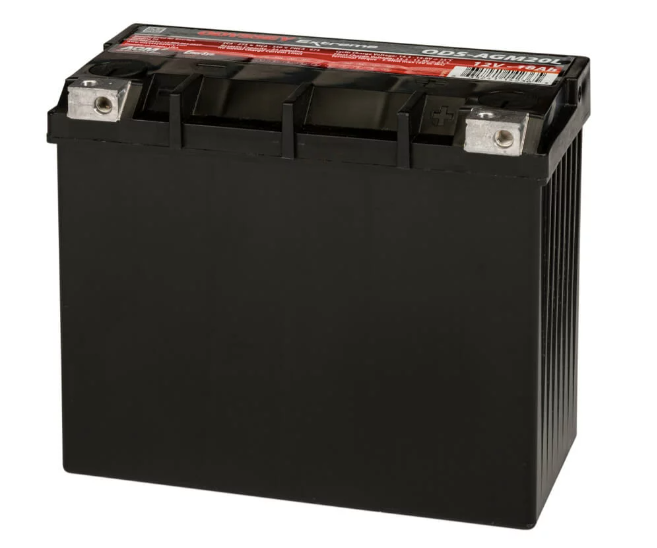

ODYSSEY Extreme Battery ODS-AGM20L

Introducing the ODS AGM20L

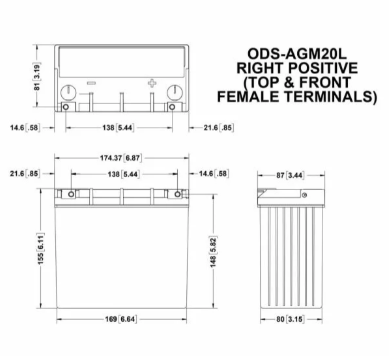

Drawings & Terminal Position

Handling and Storage

• Can be mounted or stored in any orientation except inverted
• 2-years storage life at 77°F (25°C) without needing to charge. Recharge when the OCV is <12.2V (50% SOC).
• Classified as non-spillable and approved as non-hazardous cargo for ground, sea and air transportation in accordance with the requirements of IMDG (International Maritime code for Dangerous Goods) and ICAO (International Civil Aviation Organisation)

Charging and Self-Discharge

Type of charging curve                                                IUU

Charger voltage at 68°F (20°C)                                   14.4V to14.8V

Self-discharge per month at 68°F (20°C)                    1.25%

Self-discharge per month at 104°F (40°C)                  5%

80% depth of discharge cycles                                   400

Battery Type

• Absorbed Glass Mat (AGM) with Thin Plate Pure Lead (TPPL)
• Advanced dual-purpose battery for engine start and deep cycle use

Power and Performance

Voltage                                                                               12V

Pulse (5 second) Hot Cranking Amps (PHCA)                    675A

Cold Cranking Amps (CCA)                                                275A

HCA                                                                                    400A

MCA                                                                                   350A

20Hr Nominal Capacity (Ah)                                              18Ah

10Hr Nominal Capacity (Ah)                                              17Ah

Reserve Capacity Minutes                                                 24 mins

Terminal                                                                            M6 Receptacle

Torque Spec in-lbs (Nm max)                                           50 (5.6)

Dimensions and Weight

Length                                                                             6.9 in / 175mm

Width                                                                              3.4 in / 86mm

Height (terminals included)                                            6.1 in / 155 mm

Height (container)                                                           6.1 in / 155 mm

Weight                                                                             13 lbs / 5.9 kg

Temperature

Operating temperature range                                        -40°F / -40°C to 140°F / +60°C

Optimum storage temperature                                       68°F / +20°C

Accreditations

The management systems governing the manufacture of this product are ISO 9001 and ISO 14001 certified.

*Cold Start Performance S.A.E J537 Apr 2016

The Odyssey ODS-AGM20L Extreme Battery is a top-of-the-line powersport battery designed to meet the rugged demands of motorcycle, ATV, UTV, and watercraft applications. With its non-spillable Absorbed Glass Mat (AGM) design, this battery is built to withstand the pounding delivered by powersport vehicles and resist extreme vibration. The ODS-AGM20L features thin plate pure lead technology, providing twice the overall power and three times the life of conventional batteries. This virtually maintenance-free battery is designed for extreme use and is a direct replacement for the 20L-BS, 20HL-BS, 20L, and 20HL batteries. With its sealed design and brass M6 receptacle terminals included, this battery is the perfect choice for powersport enthusiasts who demand high performance and durability. Whether you’re hitting the trails or the open road, the Odyssey ODS-AGM20L Extreme Battery has got you covered.
