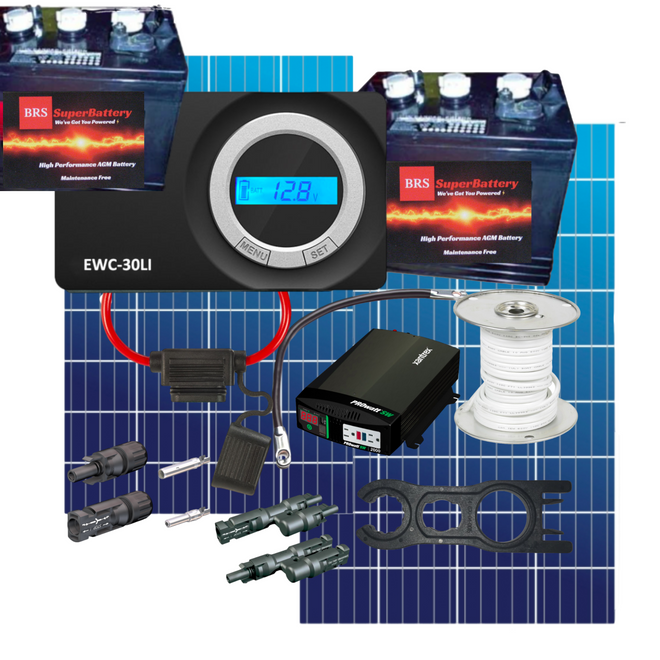

2000W PURE SINE INVERTER COTTAGE KIT


Price:
Sale price$2,272.39

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

Description

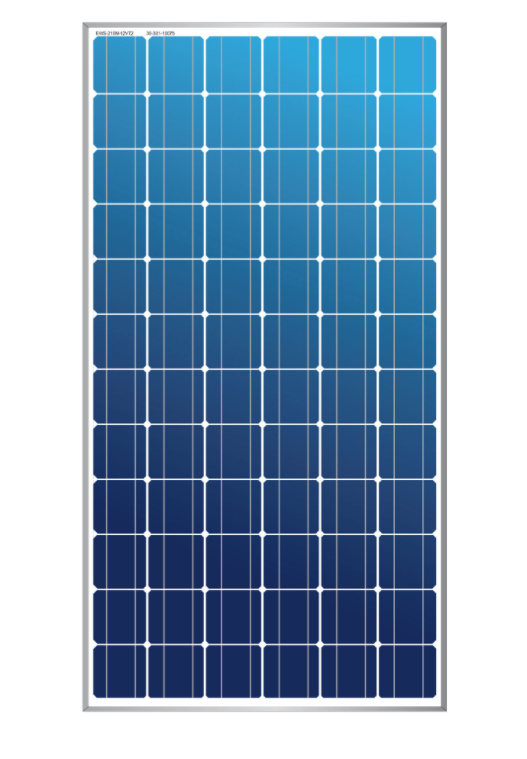

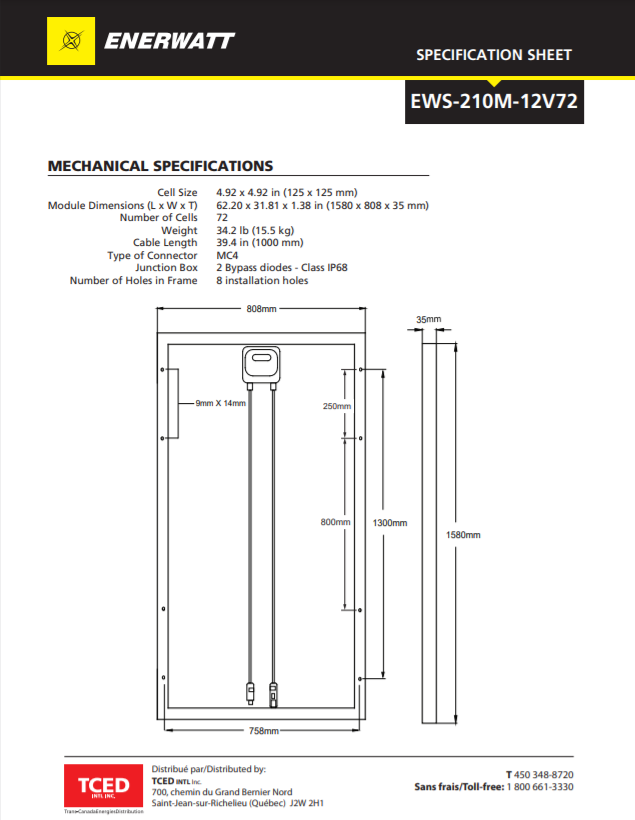

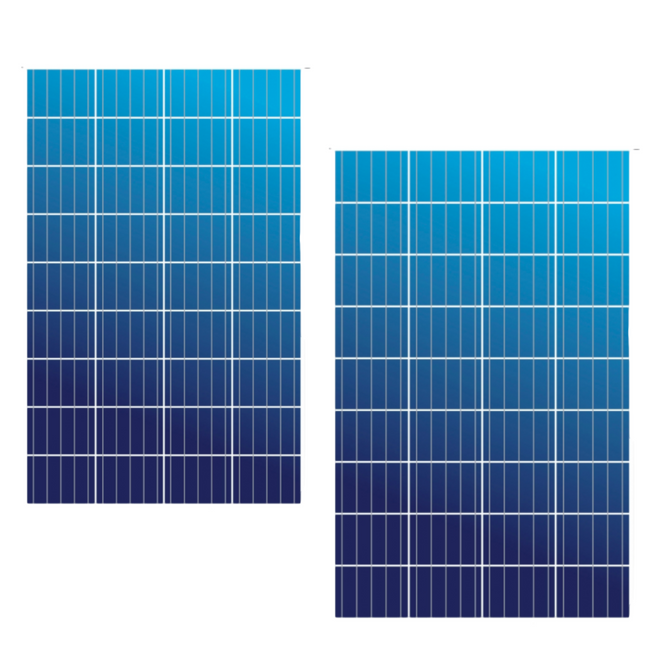

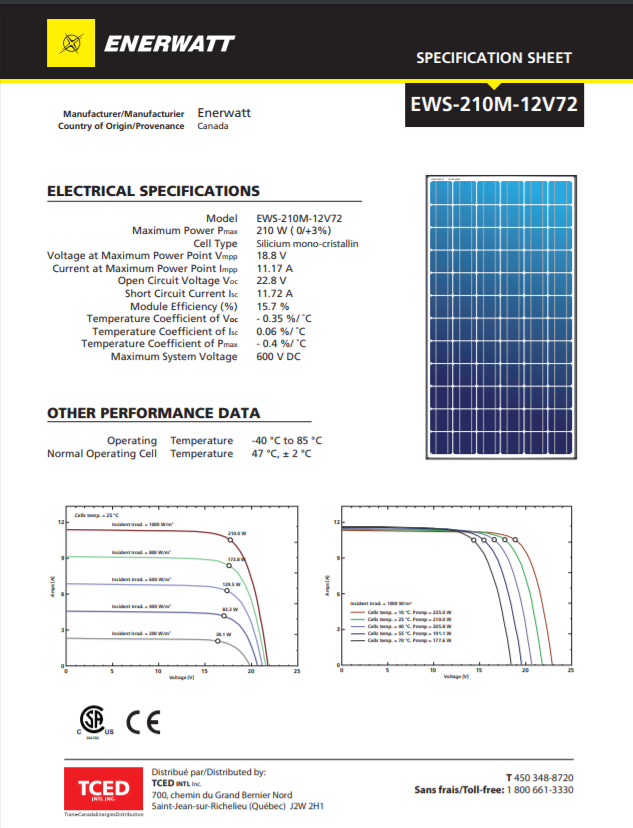

EWS-210M-12V72 Solar panel monocristalline 12V 210W

SPECIFICATIONS

Ampères / Amps
11.43 Imp / 11.98 Isc
Marque / Brand
Enerwatt
Garantie / Warranty
30 ans
30 years
Hauteur / Height
1.4" / 35 mm
Largeur / Width
31.8" / 808 mm
Longueur / Length
62.2" / 1581 mm
Numéro de pièce/modèle / Part/Model Number
EWS-210M-12V72
Volts
18.4 Vmp / 22.6 Voc
Watts
210

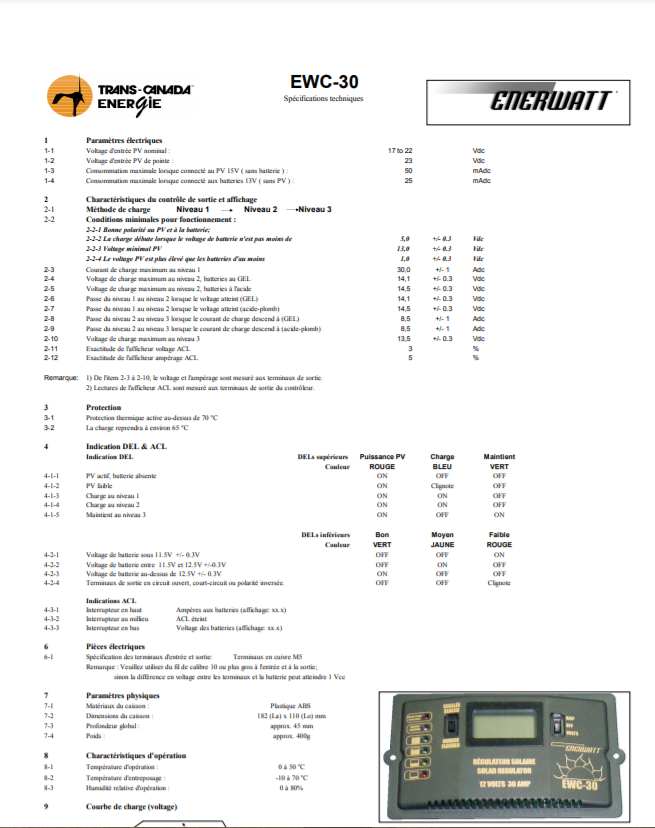

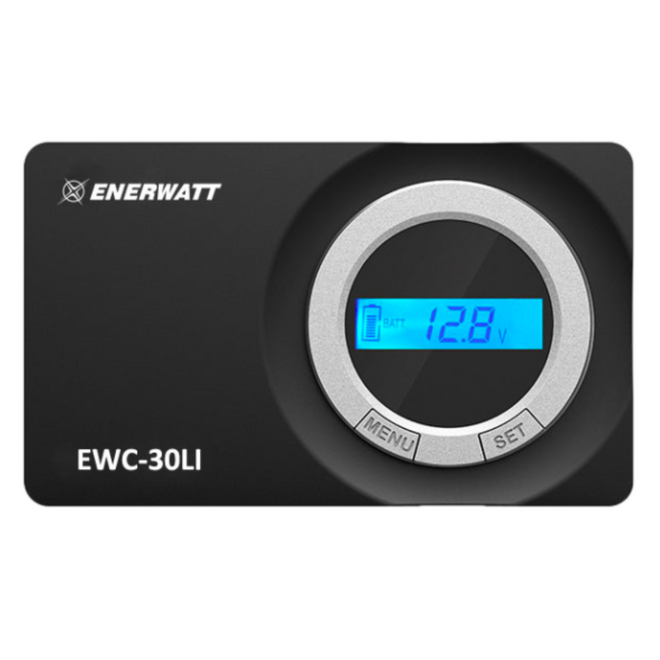

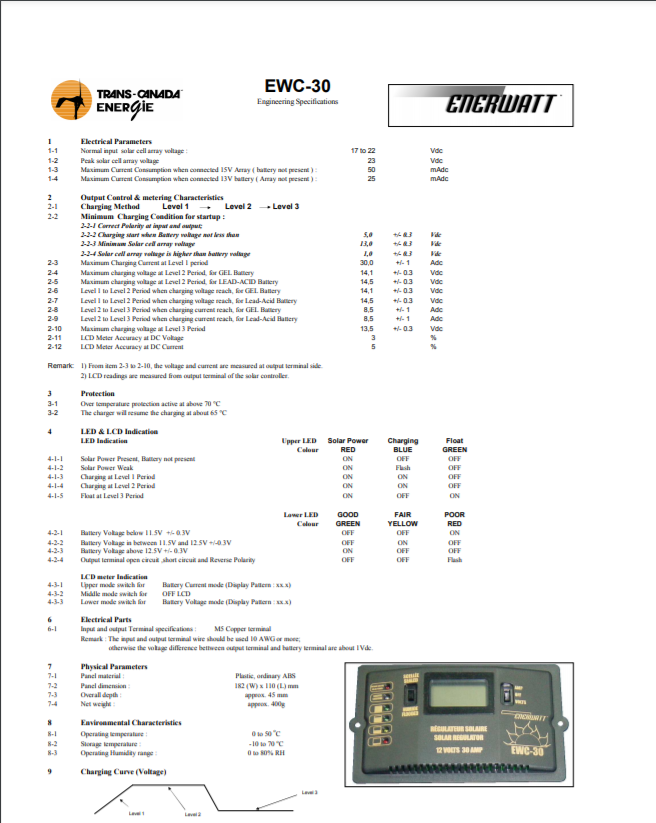

EWC-30 CONTROLLER 12V 30A METER ENERWATT

Ampères / Amps
30A
Marque / Brand
Enerwatt
Couleur / Colour
Noir / Black
Garantie / Warranty
36 mois
36 months
Hauteur / Height
4.33" / 76.2mm
Largeur / Width
7.16" / 181mm
Longueur / Length
1.77" / 45mm
Numéro de pièce/modèle / Part/Model Number
EWC-30
Marques de certifications / Regulatory Certification Marks
CE
Volts
12V

EWC-30 CONTROLLER 12V 30A METER ENERWATT

SPECIFICATIONS

Ampères / Amps
30A
Marque / Brand
Enerwatt
Couleur / Colour
Noir / Black
Garantie / Warranty
36 mois
36 months
Hauteur / Height
4.33" / 76.2mm
Largeur / Width
7.16" / 181mm
Longueur / Length
1.77" / 45mm
Numéro de pièce/modèle / Part/Model Number
EWC-30
Marques de certifications / Regulatory Certification Marks
CE
Volts
12V


GC-225 6V 220AH 440MCA DEEP CYCLE

MagnaCharge offers durable and reliable products at competitive rates. With the changing market and costs of manufacturing, MagnaCharge has launched the GC-225: a 6 volt 220 amp battery that has superior performance while meeting your budget.

Type Lead acid
Voltage 6V
Capacity 20 hour 220 Ah
Width 26.35 cm 10 3/8''
Height 27.62 cm 10 7/8''
Depth 18.09 cm 7 1/8''
Weight 28 kg 61,6 lbs
Warranty

1 year

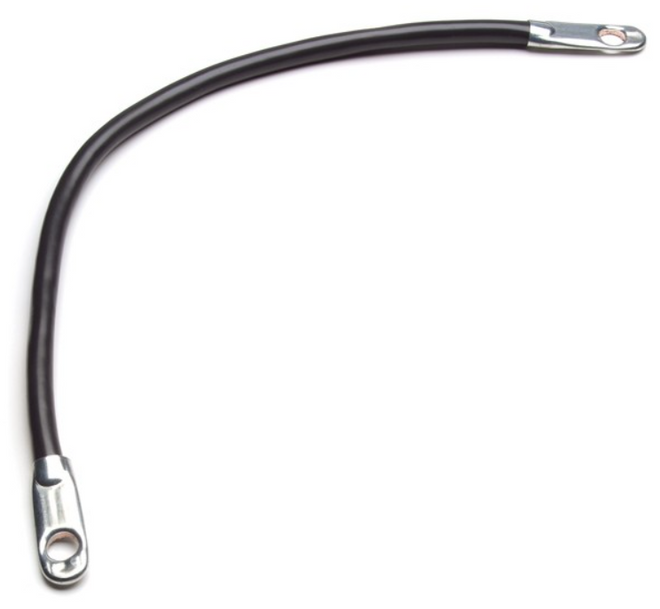

QC7515-025 SWITCH TO STARTER CABLE 1 AWG 15" (25/PK)

Marque / Brand
Quick Cable
Garantie / Warranty

Longueur / Length
15"/ 381mm
Numéro de pièce/modèle / Part/Model Number
QC7515-025
Type de terminal / Terminal Type
Lug-Lug

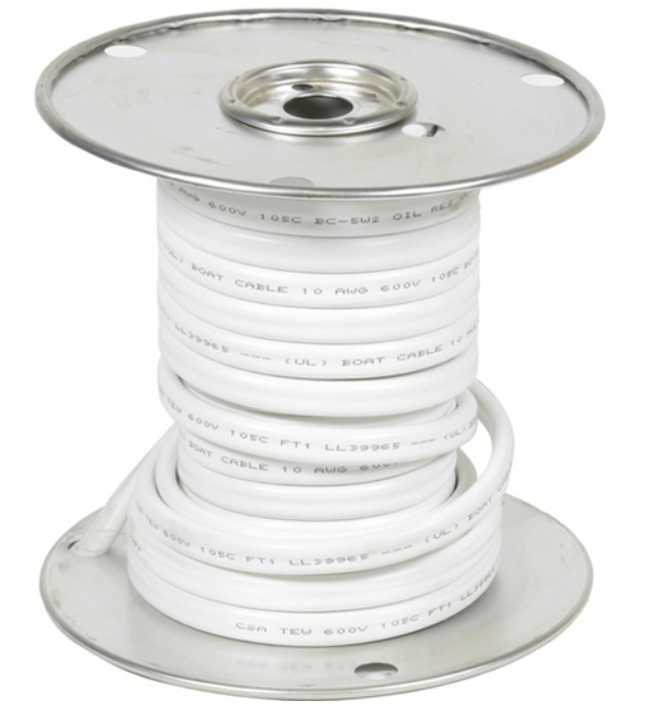

10-2AWG-MA-WT12  marine cable tinned 10/2 AWG 12 meter roll

Marque / Brand
Non-applicable / Not-applicable
Garantie / Warranty

Longueur / Length
12 M / 39.37'
Numéro de pièce/modèle / Part/Model Number
10-2AWG-MA-WT12

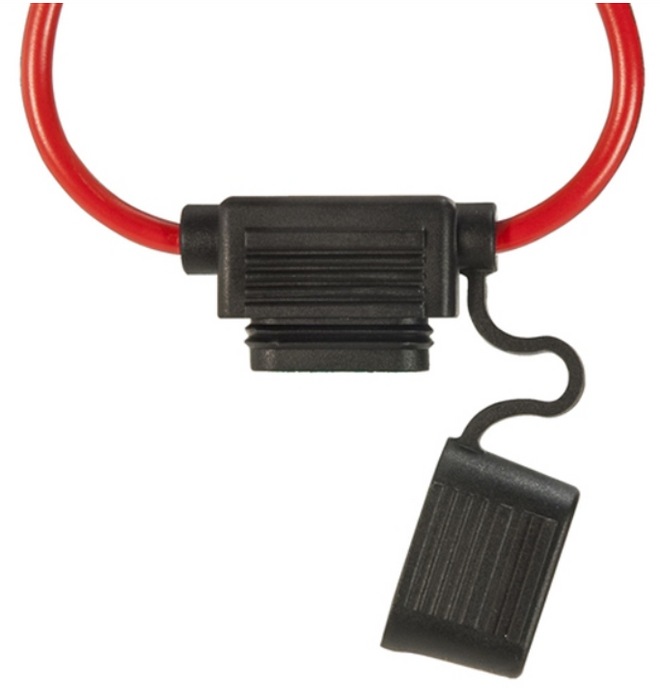

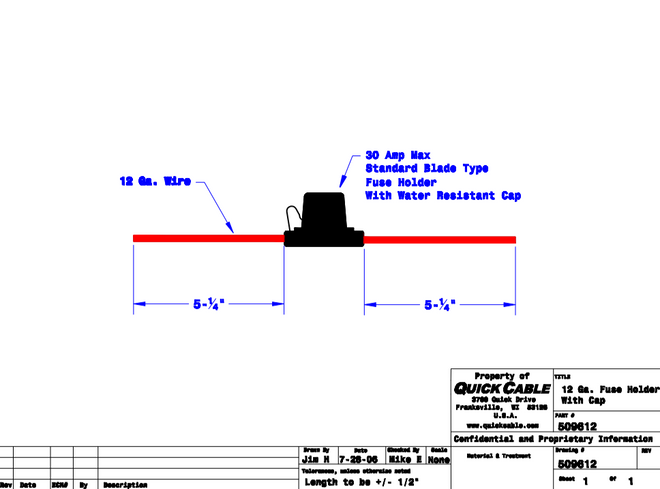

QC509612-2001 FUSE HOLDER 30A BLADE WATERPROOF 12GA

Ampères / Amps
30A
Marque / Brand
Quick Cable
Garantie / Warranty

Numéro de pièce/modèle / Part/Model Number
QC509612-2001
Volts

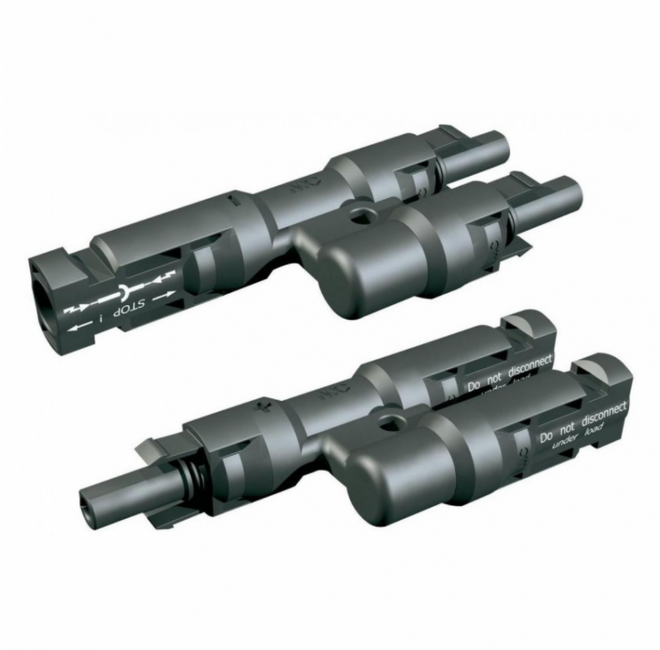

YF-1001-T MC4 MALE +FEMALE Y SPLITTERS FOR SOLAR PANEL

Ampères / Amps
30A MAX
Marque / Brand
Non-applicable / Not-applicable
Garantie / Warranty
25 ans
25 years
Numéro de pièce/modèle / Part/Model Number
YF-1001-T
Volts
1000VDC MAX
Poids / Weight (kg)
0.04

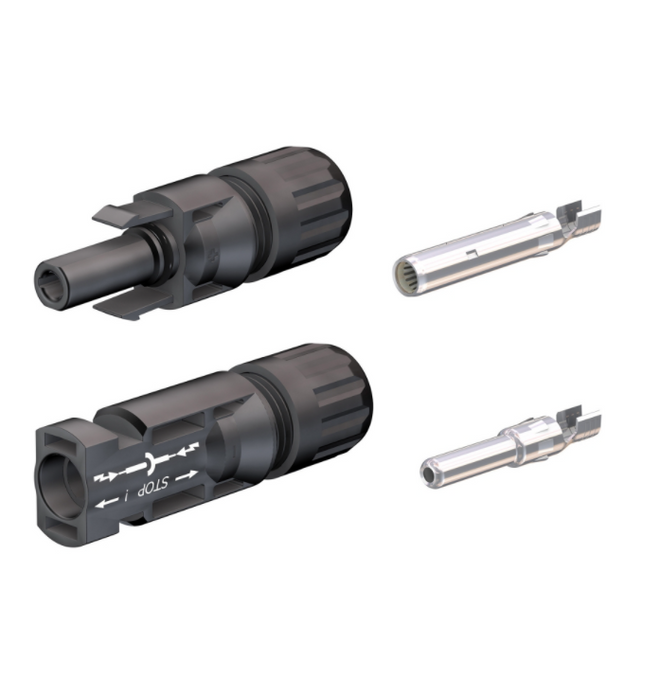

MC4-PAIRE CONNECTOR MC4 PAIR MALE/FEMALE

DESCRIPTION


MC4-2 SOLAR PANEL MULTI-CONTACT CONNECTORS

EASY AND FAST INSTALLATION OF YOUR SOLAR PANEL WITH MC4-PAIRE CONNECTORS

Today, most solar panels come with approximately 3 ft. of Positive (‘+’) and Negative (‘-‘) wire. One end of each wire is connected to the junction box of the panel. In most solar panels, the other end of each wire is terminated with an MC4 connector. The Positive (‘+’) wire has a Female MC4 Connector and the Negative (‘-‘) wire has a Male MC4 Connector.

To extend the length of the wires of these solar panels for connection to a charge controller, combiner box or grid-connected inverter, an extension wire is required with corresponding Male and Female MC4 Connectors.

QUICK ASSEMBLY
The MC4-PAIRE KIT contains 1 male and 1 female MC4 solar panel connector. This type of connector system is easy to install and uses “snap-in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection.
Once the connectors locked, the mating contacts are sealed against ingress of dust and water.

CONNECTOR COMPONENTS
The Male and Female MC4 Connectors consist of the following components:
• Outer insulated housing with locking arrangement.
• Tin-plated Copper metallic male & female mating contacts. The wire is placed in the crimping area and crimped with a special crimping tool, such as the PV-FMC4
• Nut & internal rubber bush. When the nut is tightened, the internal rubber bush is compressed around the outer jacket of the cable and thus, provides water-tight sealing.

CABLE GAUGE
The MC4 connectors provided are compatible for use with AWG #10 or AWG #12 wire with outer insulation diameter 3



SPECIFICATION

Marque / Brand
Non-applicable / Not-applicable
Garantie / Warranty
25 ans
25 years
Numéro de pièce/modèle / Part/Model Number
MC4-PAIRE
Marques de certifications / Regulatory Certification Marks
UR
Poids / Weight (kg)
0.02

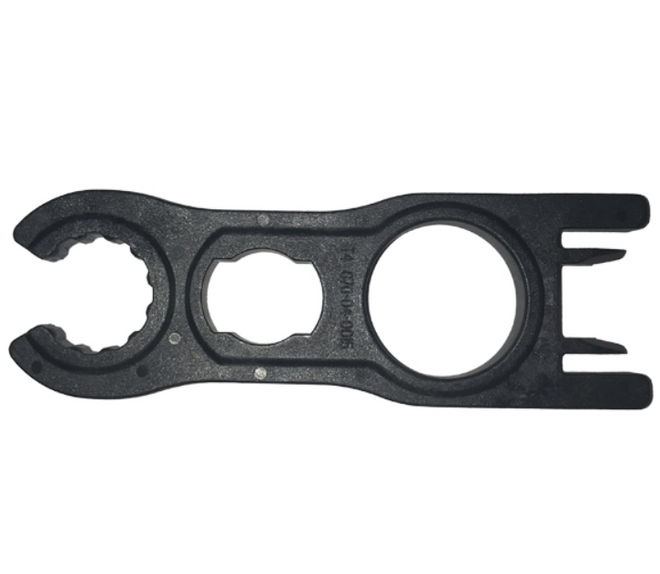

MC4-OUTIL ASSEMBLY TOOL FOR MC4 CONNECTORS

Marque / Brand
Non-applicable / Not-applicable
Garantie / Warranty
25 ans
25 years
Numéro de pièce/modèle / Part/Model Number
MC4-OUTIL
Poids / Weight (kg)
0.02

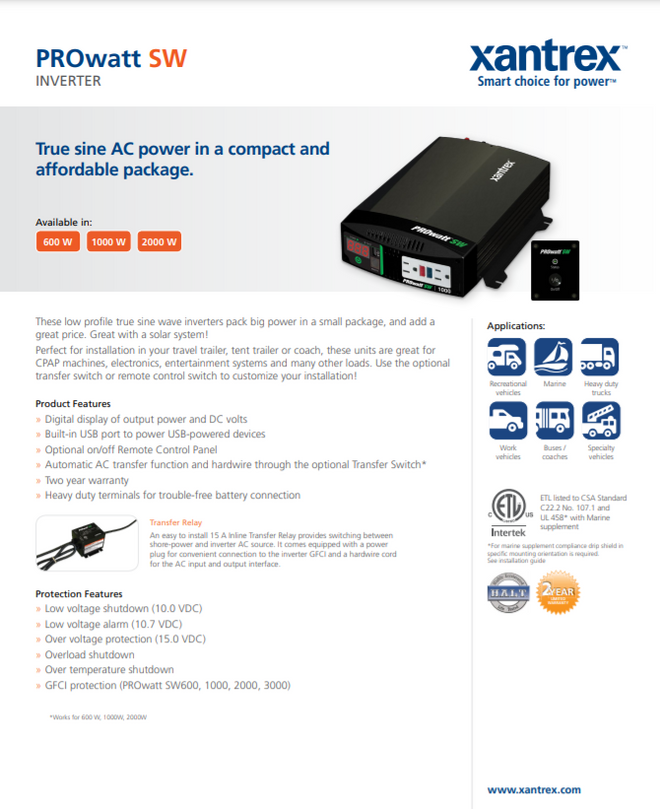

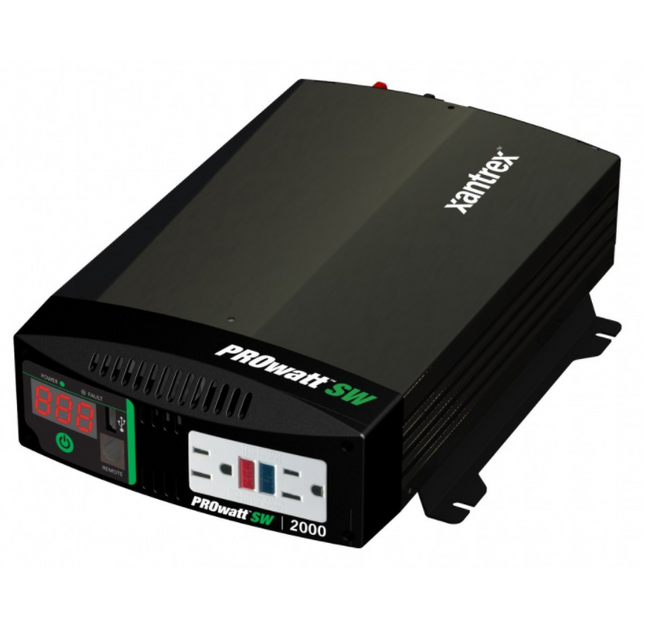

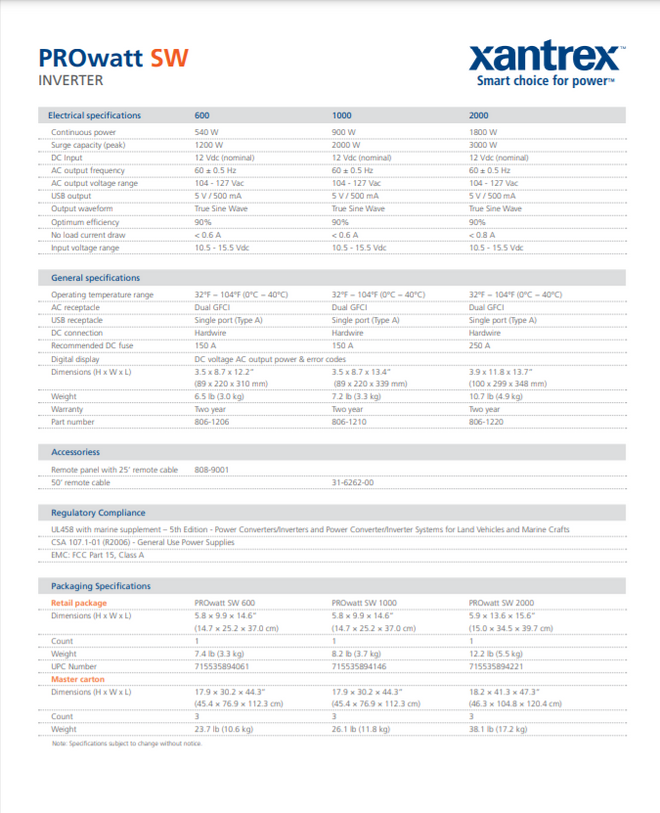

PROWATT-2000 806-1220 INVERTER 12V 2000W PURE SINE PROWATT SW

Marque / Brand
Xantrex (Schneider Electric)
Garantie / Warranty
24 mois
24 months
Hauteur / Height
3.9" / 100mm
Largeur / Width
11.8" / 300mm
Longueur / Length
13.7" / 348mm
Numéro de pièce/modèle / Part/Model Number
PROWATT-2000
Marques de certifications / Regulatory Certification Marks
CSA
Volts
12V
Watts
2000
Puissance de pointe (W) / Peak Watts
3000
